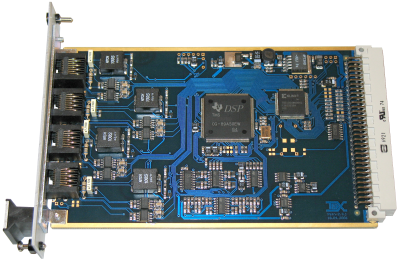

Anologue interface board (Front End)
download the data sheet
ask a question
|
|
|
No. of lines: |
4 | |
| No. of channels: | 4 | |
| Input connectors: | RJ-45 | |
| Connection mode: | - in series: phones - in parallel: radiotelephones, phones |
|
| Input level: | 50 mV - 2 V (AGC implemented) | |
| Input impedance: | > 30 kΩ | |
| Signal to Noise level: | > 46 dB | |
| Channel crosstalk: | < -63 dB | |
| Power consumption: | < 2 W | |
| Recording triggering factors: | - detection of current flow in phone line (in series connection) - signal crossing threshold level (VOX, in parallel connection) |
|
| Supported CLIP standards: | DTMF (DNK, BRA, ETSI 1 and 2 type) FSK (ETSI 1 and 2 type, BELLCORE MDMF/SDMF) |
|
| Supported selective call standards: | ZVEI1, PZVEI, ZVEI2, ZVEI3, DZVEI, PDZVEI, CCIR1, CCIR2, PCCIR, EEA, EURO_SIGNAL, NATEL, EIA, MODAT |
|
| Additional features: | - recording a fax transmission - remote firmware upgrade is possible |
|
| Dimensions (width x height x depth): | 132 x 26 x 180 | |

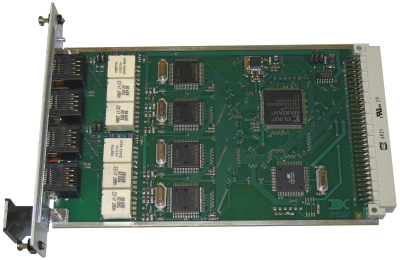

ISDN BRI S/T interface board
download the data sheet
ask a question
|
|
|
No. of lines: |
4 (2 linie ISDN) | |
| No. of channels: | 4 | |
| Input connectors: | RJ-45 | |
| Connection mode: | in parallel |
|
| Power consumption: | < 0,4 W | |
| Supported standards and protocols: | I.430 (S/T interface), Q.921, Q931, G.711 (Alaw) coding | |
| Basic features: | - audio recording of placed call - recording of calling and called party numbers - collection COLP number (if available) - recording of unconnected calls - signaling ISDN line status (LED) |
|
| Additional features: | - collection call receiving waiting time - BOSCH TN1R6 protocol support - remote firmware upgrade is possible - other (on request) |
|
| Dimensions (width x height x depth): | 132 x 26 x 180 | |

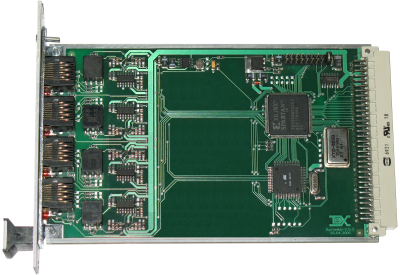

Digital line interface board
download the data sheet
ask a question
|
|
|
No. of lines: |
4 | |
| No. of channels: | 4 | |
| Input connectors: | RJ-45 | |
| Connection mode: | in parallel | |
| Power consumption: | < 0,5 W | |
| Supported phone system standards: | Alcatel, Bosch, Coral, DGT, Ericsson, Kapsch, LG, Avaya, Matra, Panasonic, Philips, Platan, Siemens, Slican one proprietary system for one board |
|
| Basic features: | - recording of audio signal from interface board's channels - recording of the phone display content (except DGT) - recording of called party number - recording of unconnected calls - full support for two phones on the line (Panasonic, Siemens, Alcatel) |
|
| Additional features: | - registration records from the first incoming ring - recording control with the function keys - remote firmware upgrade or change of the supported system is possible - other (on request) |
|
| Dimensions (width x height x depth): | 132 x 26 x 180 | |
